Very rare Thinkpad 500 1993 subnotebook

LARGE picture files allowed here. Those with slow connections, beware!!! do NOT go here on your PDA or Cell Phone!
Post Reply
Message
Author
hwattys
Junior Member
Junior Member
Posts: 340
Joined: Fri Dec 10, 2004 9:14 am
Location: Central Indiana
Contact:

Very rare Thinkpad 500 1993 subnotebook

#1 Post by hwattys » Sun Nov 09, 2014 11:11 am

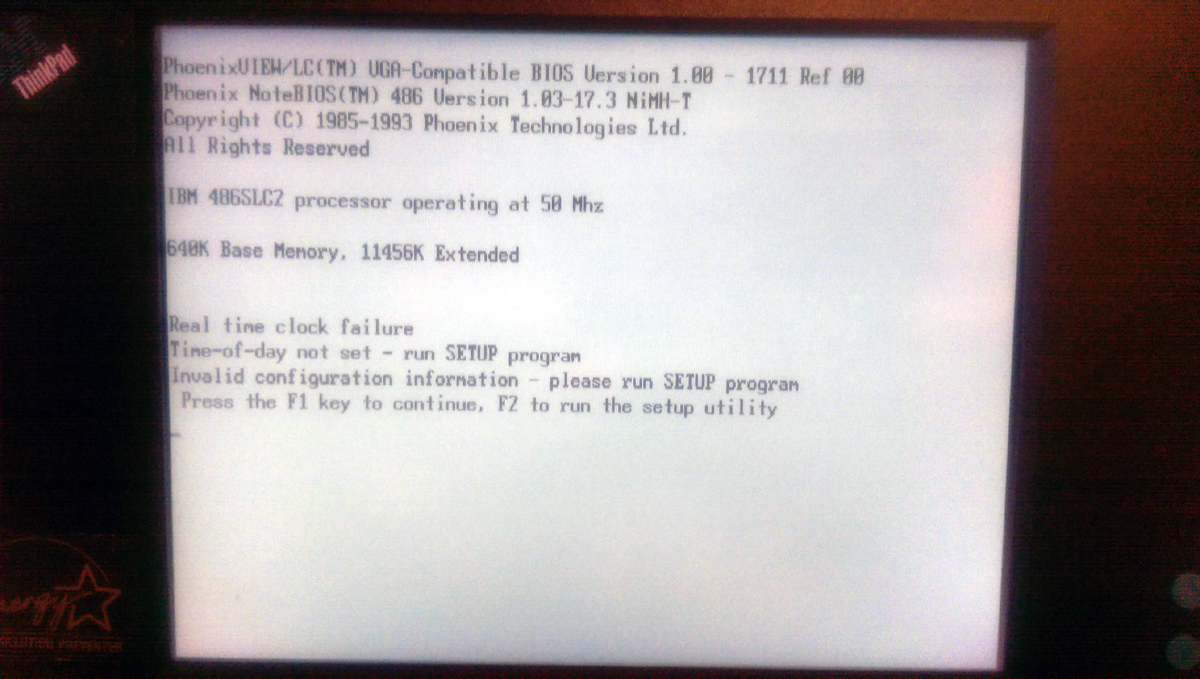

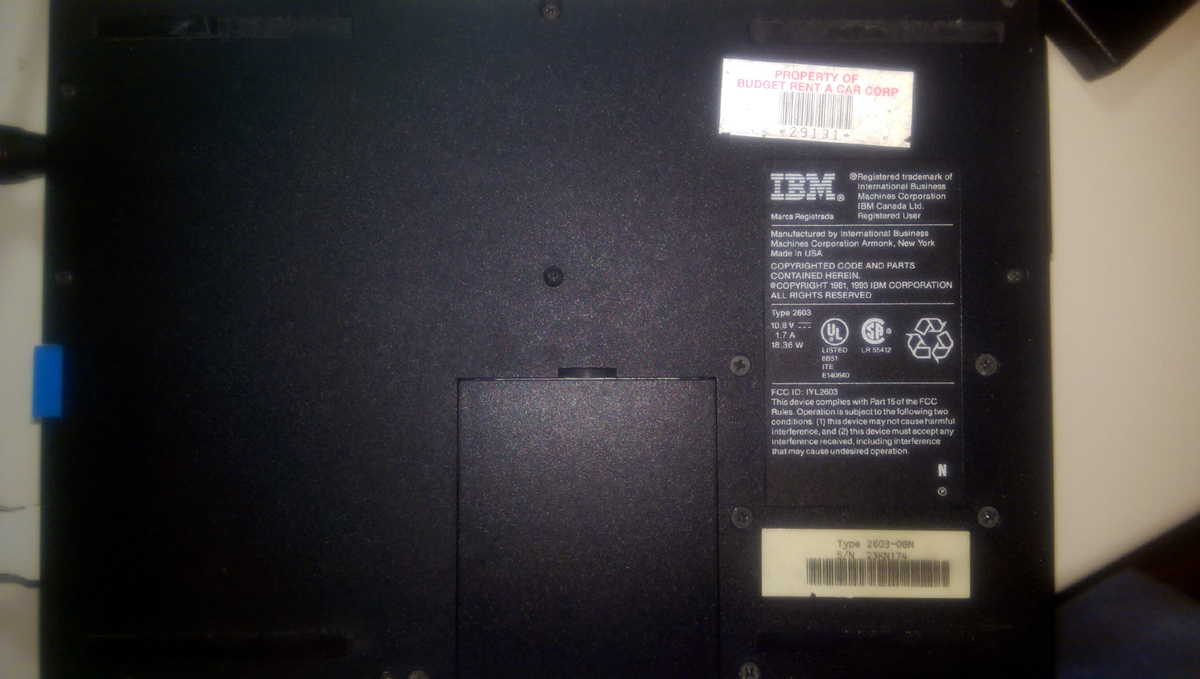

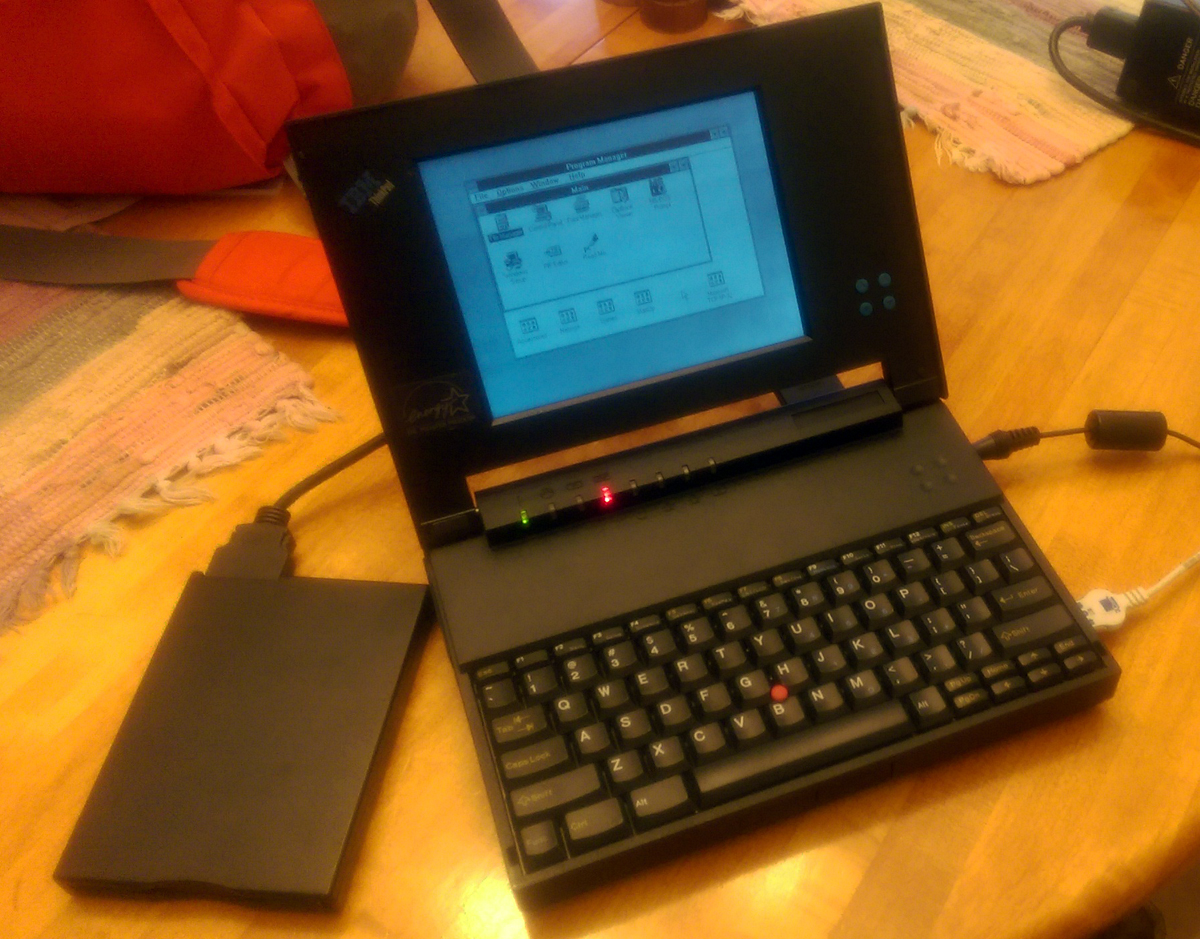

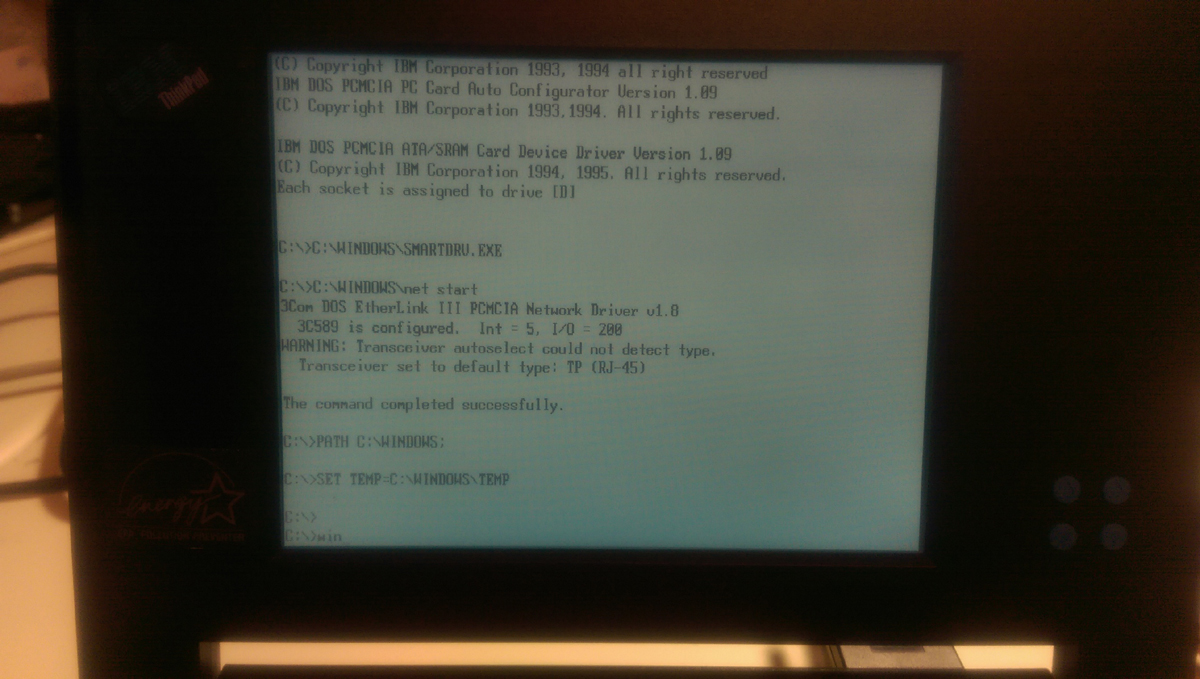

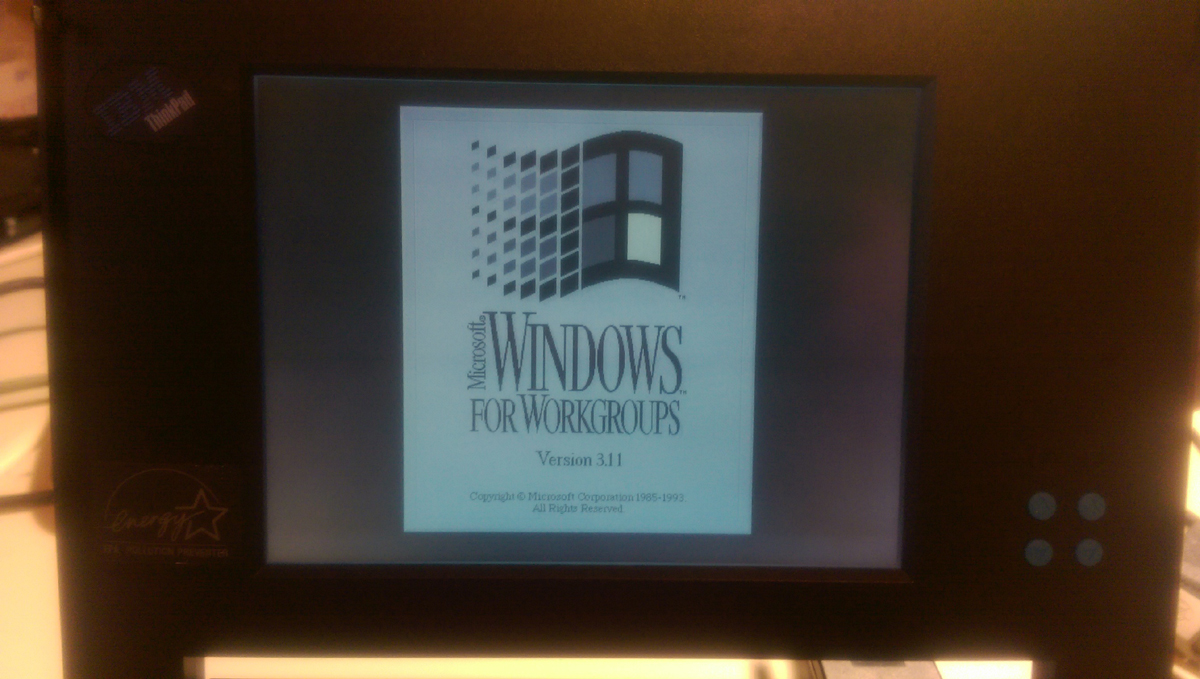

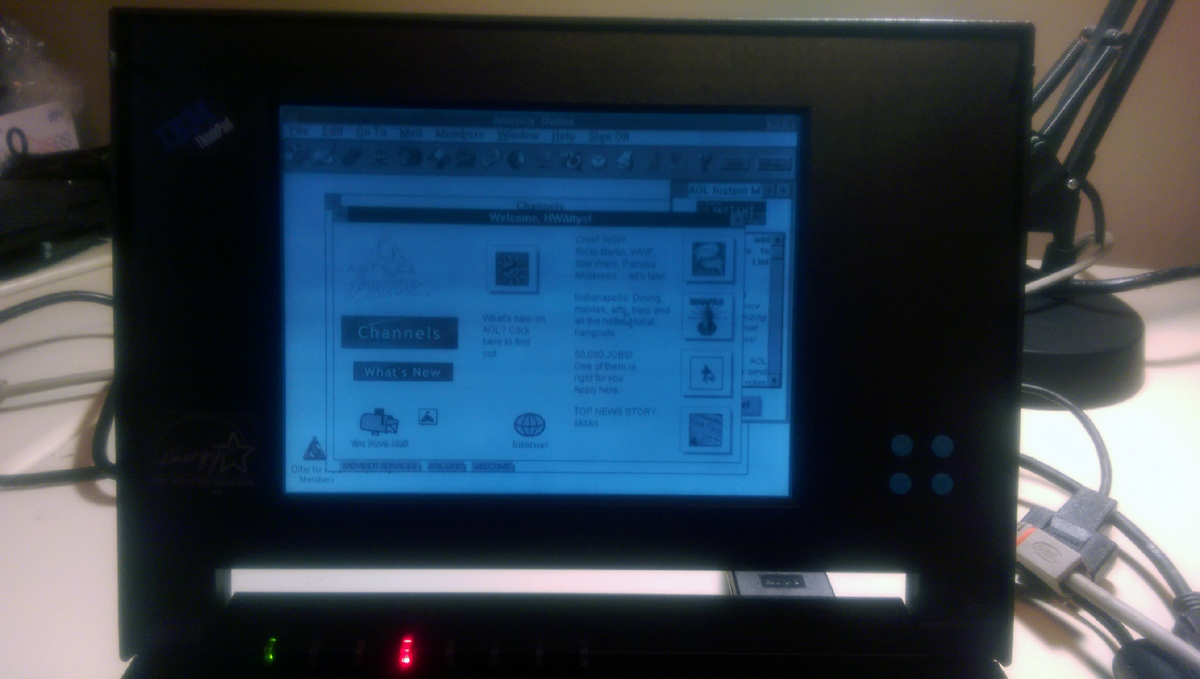

This is definitely the class of my collection. 1993 vintage 2603-08N Thinkpad 500. Monochrome screen, 50 mhz 486 CPU, 80 meg hdd, floppy, 12 megs RAM (4 onboard plus an 8 meg DRAM card). I have loaded Windows for Workgroups 3.11 with an active 3Com pcmcia NIC...and classic AOL 3.0. The odd thing about the configuration is that the mouse buttons are in the front.


I think you might say this is the direct lineal ancestor of the 701C... it competed with the Compaq Contura Aero (I also have one of those) and the HP 540 series for the first workable subnotebook. The Aero is a 33 mhz processor and has a very poor 16 color (not 16 bit) DSTN screen. The Thinkpad has it beat hands down for design, of course.

automobus
Senior Member
Senior Member
Posts: 546
Joined: Sun Jan 24, 2010 5:32 pm
Location: USA : Illinois : Chicago

ThinkPad 500 2603-08N

#2 Post by automobus » Sun Nov 09, 2014 11:40 am

Nice treasure you have! Why no photo of AC adapter? What connector does it use: 5.5/2.5, 6.3mm, trapezoid four pin, something else? What about floppy connector: is it 600/770 type, 365XD type, or 701C type?

hwattys
Junior Member
Junior Member
Posts: 340
Joined: Fri Dec 10, 2004 9:14 am
Location: Central Indiana
Contact:

Re: Very rare Thinkpad 500 1993 subnotebook

#3 Post by hwattys » Sun Nov 09, 2014 2:02 pm

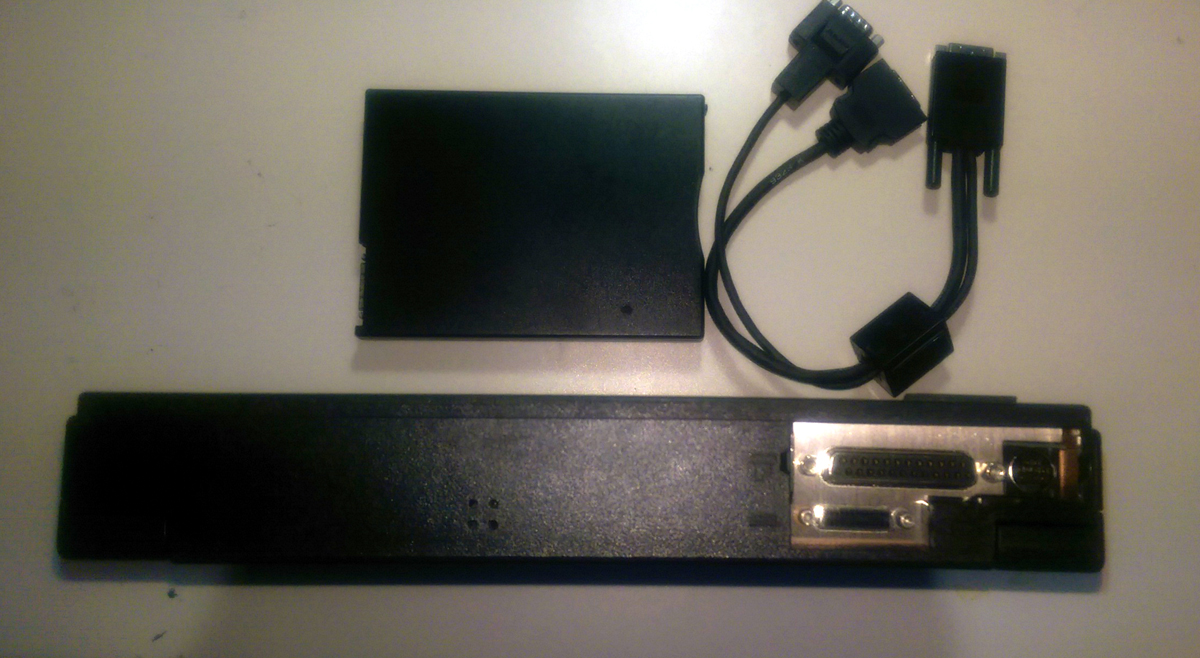

The AC adapter is an FRU 59G7991 16.3v/1.84a and has a short barrel with a wide center connection like the 350 model and the 730T. The floppy is unique as far as I know. The connector cable has a pass-through serial port connection. It uses the same external box as the 701C and 365XD but the other end of the cable is different than any other Thinkpad floppy cable I have seen. It attaches on the back next to the printer port.

tfflivemb2
Moderator Emeritus
Moderator Emeritus
Posts: 5532
Joined: Thu Sep 01, 2005 1:17 pm
Location: Wisconsin
Contact:

Re: Very rare Thinkpad 500 1993 subnotebook

#4 Post by tfflivemb2 » Sun Nov 09, 2014 2:31 pm

Oooooohhhh pretty!!!! I'm quite jealous! :-)

mpcook
ThinkPadder
ThinkPadder
Posts: 1111
Joined: Tue May 25, 2004 6:58 pm
Location: Lebanon, OH USA
Contact:

Re: Very rare Thinkpad 500 1993 subnotebook

#5 Post by mpcook » Mon Nov 10, 2014 6:26 pm

I owned one from new, my very first ThinkPad (but not my first IBM, I had an IBM PC 5150). Unfortunately I sold the 500 when I upgraded to a 600. I wish I still had it, it was my favorite. I had a DEC subnotebook before the 500, and the TP was far superior.
Current: 2 x W520 ET, 2 x X220 i7, T420, X230 i5, T420s, MacbookPro, Dell Venue 11 Pro, Dell XPS 8930
Past: IBM5150-8088 500 600E 600X T20 T21 5xT23 X30 3xX31 X32 T40 T42 3xT43 T43p SL510 T60p X60T X60s T61 2xT400 T410si T400s T500-3.06GHz X200 X201 X220i5 X220i7 2xT420s

Khipata
Junior Member
Junior Member
Posts: 308
Joined: Mon Mar 24, 2014 11:33 pm
Location: Arlington, VA

Re: Very rare Thinkpad 500 1993 subnotebook

#6 Post by Khipata » Mon Nov 10, 2014 9:41 pm

I just paid for one today and am very excited :) Will post once I'll get it :)
5140,L40SX(3),PS/NOTE 425(2),PS/2 NOTE,700T,730T,700,700C(3),720C,701C(3),701CS(3),360P,360PE,750P,380,385,PC110,TRANSNOTE, Z50,240,240X,600,600E,600X(2),A31P,750C,755C,770,X40,X60,X61S,X61T,R50,R51E,R61I,T20,T21,T30,T42(2),T43,T60,T61(4),T500(2),W520,HP95LX,100LX,200LX,300,PSION II,3,NEWTON130

Norway Pad
ThinkPadder
ThinkPadder
Posts: 1161
Joined: Mon Jul 13, 2009 2:50 pm
Location: Meridian, ID & Oyer, Norway
Contact:

Re: Very rare Thinkpad 500 1993 subnotebook

#7 Post by Norway Pad » Tue Nov 11, 2014 3:11 am

Nice find, hwattys! Immaculate condition, this is probably one of those once in a lifetime finds.

Wasn't it the 500 that John Karidis looked at, when he got the idea for the concept that resulted in the 701C? He realized that the width of the machine was dictated by the width of the keyboard, which gave a lot of wasted space around the screen. He also noticed that the sizes of those two components were the same, except different shapes. This discovery, combined with a whole lot of creativity, resulted in the foldable Butterfly keyboard.
Bjorn
THINKPAD collector. Only missing a proper RetroThinkpad.

Tasurinchi
Moderator
Moderator
Posts: 2101
Joined: Mon Aug 17, 2009 8:38 am
Location: Zurich, Switzerland

Re: Very rare Thinkpad 500 1993 subnotebook

#8 Post by Tasurinchi » Tue Nov 11, 2014 3:42 am

Soo nice!! Congrats!
IBM Convertible 5140/L40SX/220/240/240X/2*340CSE/360PE/365XD/380D/380E/380XD/380Z/390/560E/560X/2*570/2*600/600E/750Cs/755C/760CD/760EL/760XD/770E
A20p/A22p/A31/i1600/G40/R50p/R61i/S30/SL510/2*T22/4*T4x/11*T6x/6*T40x/6*T5x0/3*W5x0/W700/3*X2x/4*X3x/3*X4x/5*X6x/3*X6xT/12*X2xx/4*X30x/Z60m/3*Z61x
