X60T/X61T SXGA+ Digitizer issue (PICS)

[MrBean]

Hello Guys,
I have recently purchased a Grade A SXGA+ panel with Wacom Digitizer (SU-040-X04) from Rek, one of our forum members here.

I used this, with parts sourced of ebay, to rebuild the new X60T (6365-CTO) base I picked of from a friend.

Currently running Windows 7 RC (7001), and am having a small issue - this issue remained the same, even with XP Tablet version installed.

The Digitizer is not working, and it seems it is not properly loading the driver for it - all other tablet buttons etc are fine, just the digitizer - I seem to recall a few people having had issues with this, especially when redoing the OS.....I have a new Pen too, yet the digitizer fails to respond - and I believe it is due to the driver.

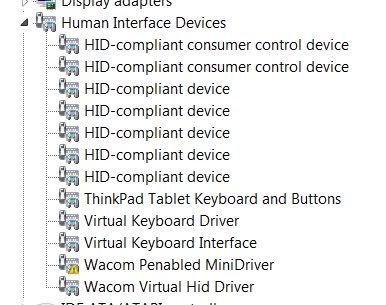

Can you guys (with X60T/X40T/X61T) post a screendump similar to theis one below - I would like to compare - also, which version driver(s) you have used.

I am really hoping it's not the panel (which I doubt), or the connection cable from the panel to the planar.

What is funny, when I was running the base on an external monitor, before I had the LCD assembly, it showed the same problem with the driver, and the hardware was not available, ie no Wacom tablet digitizer - and, it was a fresh install of Windows XP Tablet edition....




I would appreciate a list of your drivers under HID, please guys.

Br,
MrBean


mod edit: picture warning added to subject line

[MrBean]

Hello Guys,
Further to this, I still have no pen-switch assembly installed, but doubt this would be the cause of my problem.....just to make sure, anyone that can tell me if the switch contacts are made/closed/shorted when the pen is out, or if they are open when the pen is out.....

Will appreciate - this is what I'm referring to.....

[MrBean]

Heya Guys,
Anyone with the SXGA+ screen with digitizer, I would appreciate a list of your HID devices, as shown above, please

[rek]

Have you tried the Wacom drivers instead of the Lenovo ones?

I can't remember where to get them (a search on these boards should bring it up), but along with enabling extra tablet features, it sorted out some peoples' pen problems.

[MrBean]

Heya rek,
Yes, I did try various versions, from 5-03, and 5-05, the tablet versions, to the 6* professional ones.

I have anyway ordered a new LCD/digitizer cable, including the fingerprint-reader cable, as the one I got off ebay was 2nd hand, and did not include the fingerprint-reader cable.

I will get this sorted, hopefully it is a cable problem

No worries, will keep the guys posted, and take pictures for whoever wants to do this next time.

I will still appreciate a list of HID drivers on a X60T, as shown above.
