Take a look at our
ThinkPads.com HOME PAGE
For those who might want to contribute to the blog, start here: Editors Alley Topic
Then contact Bill with a Private Message

Question about X4 dock sliding cover

X2/X3/X4x series specific matters only
Post Reply
Message
Author
rkawakami
Admin
Admin
Posts: 10137
Joined: Sun Jun 04, 2006 1:26 am
Location: San Jose, CA 95120 USA
Contact:

Question about X4 dock sliding cover

#1 Post by rkawakami » Fri Apr 24, 2009 4:00 pm

I recently bought this X4 dock for my X41t: http://cgi.ebay.com/ws/eBayISAPI.dll?Vi ... 0299098568

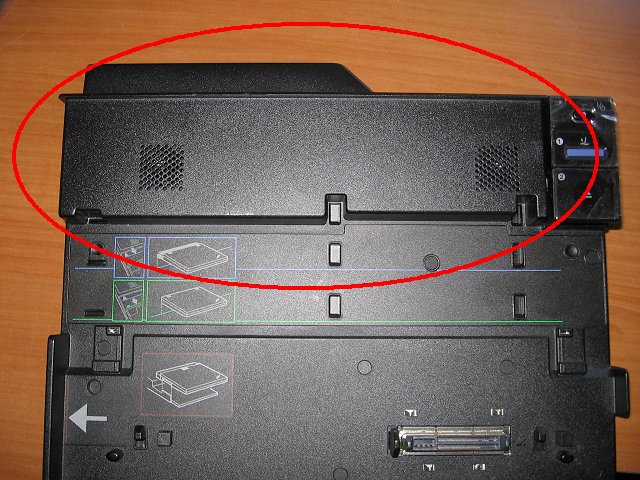

As pictured, it shows the sliding cover (with the tri-color IBM logo) which I assume moves to fill in the gap when using the smaller-sized battery. The unit that arrived does not have this cover and I was wondering if there's some other function that it might provide: Here's what mine looks like:

http://www.kawakami-ca.com/ibm_x4x/img_8786m.jpg (640 x 480; 100KB)

I'm trying to decide whether or not to return the unit. Functionally, it seems to work just fine without the slider.

edit: I've checked the X41 Tablet HMM and this piece is apparently called an "adjuster" and has a separate FRU :?: (26R8537)
edit2: Corrected "Ultrabase" to "dock"
Ray Kawakami
X22 X24 X31 X41 X41T X60 X60s X61 X61s X200 X200s X300 X301 Z60m Z61t Z61p 560 560Z 600 600E 600X T21 T22 T23 T41 T60p T410 T420 T520 W500 W520 R50 A21p A22p A31 A31p
NOTE: All links to PC-Doctor software hosted by me are dead. Files removed 8/28/12 by manufacturer's demand.

sjthinkpader
Senior ThinkPadder
Senior ThinkPadder
Posts: 2908
Joined: Tue Jan 22, 2008 8:29 pm
Location: San Jose, CA

Re: Question about X4 Ultrabase sliding cover

#2 Post by sjthinkpader » Sat Apr 25, 2009 10:27 am

I don't know why they did it that way other than lower cost. It should use a sliding cover like the 2878 type docks. I would just use it.
T60p 2623-DDU/UXGA IPS/ATI V5200
T60 2623-DCU/SXGA+ IPS/ATI X1400
T43p 2668-H8U/UXGA IPS/ATI V3200
R50p 1832-NU1/UXGA IPS/ATI FireGL T2
X61t 7762-B6U dual touch IPS/64GB SSD
X32 2673-BU6/32GB SSD
755CDV 9545-GBK Transmissive Projection LCD

rkawakami
Admin
Admin
Posts: 10137
Joined: Sun Jun 04, 2006 1:26 am
Location: San Jose, CA 95120 USA
Contact:

Re: Question about X4 Ultrabase sliding cover

#3 Post by rkawakami » Wed Apr 29, 2009 1:58 pm

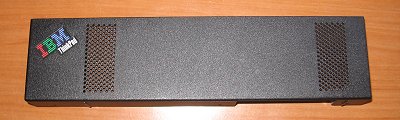

Received an unexpected present in the mail today:

http://www.kawakami-ca.com/ibm_x4x/img_8802m.jpg (400 x 120; 15KB)

Now that I see exactly what it is, it does really appear to be a non-essential item. I was thinking that it was a spring-loaded slider like what's on some other docking stations. This is just a plastic cover which is manually moved to one of three positions :roll: .
Ray Kawakami
X22 X24 X31 X41 X41T X60 X60s X61 X61s X200 X200s X300 X301 Z60m Z61t Z61p 560 560Z 600 600E 600X T21 T22 T23 T41 T60p T410 T420 T520 W500 W520 R50 A21p A22p A31 A31p
NOTE: All links to PC-Doctor software hosted by me are dead. Files removed 8/28/12 by manufacturer's demand.

Treefrogfarmer
Posts: 14
Joined: Sun May 10, 2009 3:32 pm
Location: Seattle, Washington

Re: Question about X4 dock sliding cover

#4 Post by Treefrogfarmer » Thu Jun 11, 2009 1:53 pm

I picked up a used X41 Tablet and quite naively set out to purchase an X4 UltraBase. After I ordered it, I found the statement in the Thinkwiki that the X4 Ultrabase was "incompatible" with the X41 Tablet. I was quite bummed. :eek:
The unit I received was a ThinkPad X4 UltraBase P/N 91P9283; FRU P/N 91P9282. At first sight it appeared to be too small to accommodate the Tablet :roll: but surprisingly it does match up :lol: and dock the Tablet, although it appears quite awkward-there is a gap at the bottom front of the Tablet and the UltraBase of approximately 3/16th of an inch. I assume the non-Tablet X40 and X41's have a slightly smaller footprint and match up to the X4 UltraBase more cleanly.
On testing, the power plug, usb ports and telephone out on the base all work flawlessly :banana:
I don't currently have any Ultra Slim devices to test the expansion slot but feel confident
this will work as well.
I guess I'll have to post to the ThinkWiki now :lol:
Mene,mene,tekel,Upharsin

"Nor all your piety nor wit can lure it back to cancel half a line,
"Nor all your tears wash out a word of it.

Transnote(dead),X31,T43,X41 Tablet

keithsketchley
Sophomore Member
Posts: 159
Joined: Thu Mar 26, 2009 1:13 pm
Location: Saanich B.C. Canada

Re: Question about X4 dock sliding cover

#5 Post by keithsketchley » Thu Nov 26, 2009 12:28 pm

Good news the x4 Ultrabase fits.
But is the stylus compartment usable?

keithsketchley
Sophomore Member
Posts: 159
Joined: Thu Mar 26, 2009 1:13 pm
Location: Saanich B.C. Canada

Re: Question about X4 dock sliding cover

#6 Post by keithsketchley » Tue Apr 13, 2010 3:00 pm

FYI on fitting standard x41 into x4 Dock.

Apparently there is a mark on the Table version to help align with dock.
The standard version is workable if you get the sliding cover in the right place for your battery, should be a small gap, and are careful.
However I suggest marking the side of its case, or the outside of the lid, with white or silver paint (I used a silver marker pen but they tend to be watery for smooth surfaces).

With either dock make sure the computer is fully seated else your optical drive may not work.

Post Reply
  • Similar Topics
    Replies
    Views
    Last post

Return to “ThinkPad X2/X3/X4x Series incl. X41 Tablet”

Who is online

Users browsing this forum: No registered users and 17 guests
