Need help with XP upgrade on my T23 *PIC*

#1 Post by Cuda » Sun Dec 22, 2013 12:37 pm

I'm trying to upgrade my T23 from Win2K to XP MCE "only XP copy I own with a valid COA" anyway it installed fine but I don't know what drivers to install, there is a long list to pick from and I'm not sure what all is needed, I downloaded 2 self extracting drivers and installed them but I still can't connect to the internet. 1awc32ww for the wireless and Tpveall for the Lan Adaptor.
The T23 specs are 2647-mu8 S/N 78-kb7xb, any help would be appreciated.

IBM T23
Type 2647-MU8
Running W2K Pro

Toughbook CF-48
XP Pro

rkawakami
Admin
Admin
Posts: 10052
Joined: Sun Jun 04, 2006 1:26 am
Location: San Jose, CA 95120 USA
Contact:

Re: Need help with XP upgrade on my T23

#2 Post by rkawakami » Sun Dec 22, 2013 9:07 pm

Sorry to be pedantic, but by "installing" them did you run the downloaded 1AWC32WW.EXE file, then go to the C:\DRIVERS\WIN\WLLANACT\ directory and then execute the SETUP.EXE file?

If yes, then you might want to look at the wireless card in the MiniPCI bay and confirm it's a factory unit. Somebody could have replaced it. If it IS an original combo card, then it might be bad. However, given that I've seen may a Windows OS install halt because of a bad MiniPCI card, this may not be the case here.

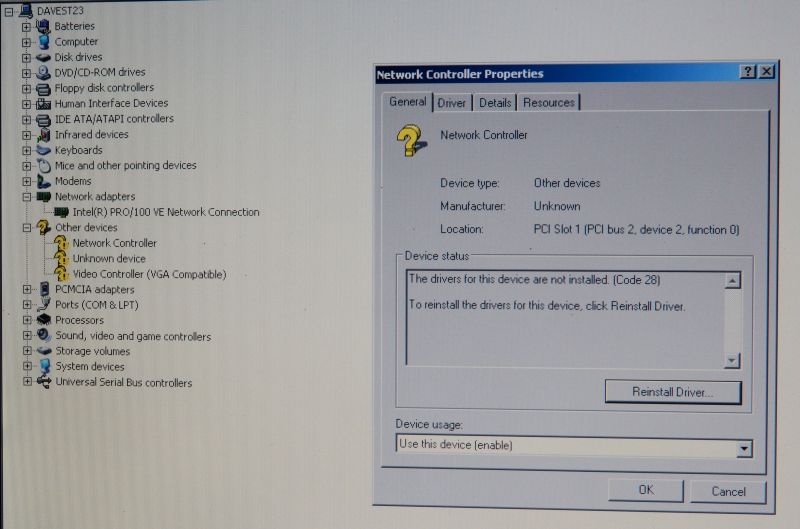

You also seem to be running in Standard VGA mode. You'll need the S3 SuperSavage/IXC16 driver. As to the "Unknown device", when you find out what it is, please tell me :) . I recently went through a Windows 98 install on a T23 and I too had this entry in Device Manager. I could not figure it out, but the system seemed to be running fine, so I left it alone.

ref: http://support.lenovo.com/en_US/researc ... D=HT072383 (T23 drivers and software)
Ray Kawakami
X22 X24 X31 X41 X41T X60 X60s X61 X61s X200 X200s X300 X301 Z60m Z61t Z61p 560 560Z 600 600E 600X T21 T22 T23 T41 T60p T410 T420 T520 W500 W520 R50 A21p A22p A31 A31p
NOTE: All links to PC-Doctor software hosted by me are dead. Files removed 8/28/12 by manufacturer's demand.

Majestic
Junior Member
Junior Member
Posts: 258
Joined: Sat Jan 02, 2010 4:00 pm
Location: N.E. Wisconsin, USA

Re: Need help with XP upgrade on my T23

#3 Post by Majestic » Mon Dec 23, 2013 8:27 am

It's been a while since I did an install on a T23, but I seem to recall that the Unknown Device I had after the install was resolved by installing the Hot Key Driver that is listed under the Software and Utility heading of the download page.

If my memory is bad :? and that didn't resolve the problem then try installing the Track Point Driver and the Power Management Driver as well. One of those should take care of the problem, at least it did for me.
My Laptop Collection:
IdeaPad Z570, 8gb RAM & Win 7 Home Premium / Win 8.1 Pro
Toshiba A75-S206, 1.5gb RAM & Windows 7 Home Premium
ThinkPad T-22 (Formerly a T-20), 512mb RAM & Win XP Pro

rkawakami
Admin
Admin
Posts: 10052
Joined: Sun Jun 04, 2006 1:26 am
Location: San Jose, CA 95120 USA
Contact:

Re: Need help with XP upgrade on my T23 *PIC*

#4 Post by rkawakami » Mon Dec 23, 2013 9:53 am

Thanks, I'll double-check those when I can get the system back from my friend but I'm pretty sure that all three were installed. The notes that I have here indicates they were installed 7th (Hotkey), 4th (Power) and 5th (Trackpoint), in order. In my haste to deliver the system I neglected to keep an image of the drive. I did put an image of the fresh install on the D: partition of the main drive so that I could have a snapshot of the system before he installed all of his programs.
Ray Kawakami
X22 X24 X31 X41 X41T X60 X60s X61 X61s X200 X200s X300 X301 Z60m Z61t Z61p 560 560Z 600 600E 600X T21 T22 T23 T41 T60p T410 T420 T520 W500 W520 R50 A21p A22p A31 A31p
NOTE: All links to PC-Doctor software hosted by me are dead. Files removed 8/28/12 by manufacturer's demand.

Cuda
Posts: 38
Joined: Sun Jan 01, 2006 5:14 pm

Re: Need help with XP upgrade on my T23

#5 Post by Cuda » Mon Dec 23, 2013 6:08 pm

rkawakami wrote:Sorry to be pedantic, but by "installing" them did you run the downloaded 1AWC32WW.EXE file, then go to the C:\DRIVERS\WIN\WLLANACT\ directory and then execute the SETUP.EXE file?
Yes I did... I've been directed to some original T23 XP .iso files that I am going to install, hopefully that takes care of this issue.
IBM T23
Type 2647-MU8
Running W2K Pro

Toughbook CF-48
XP Pro
