RasmusP · #61 Post by **RasmusP** » Wed Jun 20, 2007 2:26 pm

dfumento wrote:For an X60 as listed in signature:

Processor Intel(R) Core(TM)2 CPU T7200 @ 2.00GHz 4.9

Overall Total 3.1 Determined by lowest subscore

Memory (RAM) 1.99 GB 4.5
Graphics Mobile Intel(R) 945GM Express Chipset Family 3.2
Gaming graphics 224 MB Total available graphics memory 3.1
Primary hard disk 33GB Free (89GB Total) 5.1

Graphics rating is impressive given that it is the built-in intel 945.

Thanks, I was wondering what one could expect from the Intel 945. I have a quite similar machine, and it is good to know that it is "future-proof".

JHaislet · #62 Post by **JHaislet** » Thu Jun 21, 2007 11:19 pm

Now I'm confused! I re-installed Vista Business and got all the latest drivers and everything in Vista is set to High Performance. Bios settings have NOT changed.

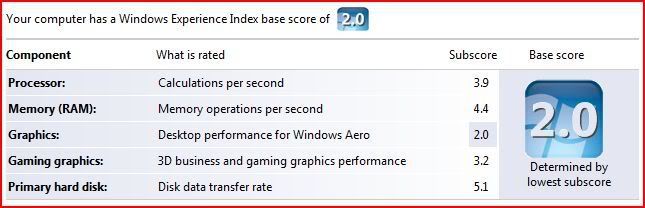

Today's score after fresh install of Vista Business
http://i74.photobucket.com/albums/i248/ ... mance2.jpg

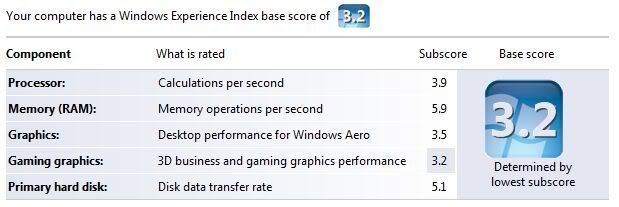

Yesterday's score w/same system:
http://i74.photobucket.com/albums/i248/ ... _Vista.jpg

Mod Edit: No images without a warning in the subject line.

cpascu01 · #63 Post by **cpascu01** » Fri Jun 22, 2007 12:25 am

I would try running it again.

JHaislet · #64 Post by **JHaislet** » Fri Jun 22, 2007 12:29 am

I'm not sure what the problem is. I've probably run it at least 20 times while trying different driver combinations ( drivers from Windows Update, Lenovo System Updater, and individual hardware manufacturer's websites like Intel & ATI).

I'm really stumped at this point! Anything obvious I could be overlooking?

cpascu01 · #65 Post by **cpascu01** » Fri Jun 22, 2007 1:02 am

JHaislet wrote:I re-installed Vista Business and got all the latest drivers and everything in Vista is set to High Performance.

When you say "everything" does that mean programs like AC, RR, and other thinkpad software? I know I've gotten different result depending on what software I have installed. A fragmented hd also affects your score.

Hope you figure this out.

JHaislet · #66 Post by **JHaislet** » Fri Jun 22, 2007 1:10 am

I only installed the essential Thinkpad software. I blew out the Rescue & Recovery partition last year and have never used those programs. I'm not sure what "AC" is, but I did a fresh install (formatted the HDD).

Thinkpad Software Installed:
Active Protection
Keyboard Customizer
Power Manager
System Update
Thinkvantage Fingerprint Software

Have tried both ATI Catalyst 7.4 & 7.5 drivers (both driver versions yielded my faster "before" scores, yet are MUCH slower now on my current install).

snorlax360 · #67 Post by **snorlax360** » Fri Jun 22, 2007 2:39 pm

I have a T60 and it seem like mine is pretty slow or should i switch back to window xp pro? I am running vista ultimate. I havnt install any thinkpad software yet, that might be the problem. Or do i even have to since i did a clean install of vista?

Original description: T2300(1.66GHz), 512MB RAM, 60GB 5400rpm HD, 15in 1024x768 LCD, Intel 950, CDRW/DVD, Intel 802.11abg wireless, Modem, 1Gb Ethernet, UltraNav, Secure chip, Fingerprint reader, 6c Li-Ion batt, WinXP Pro

processor 4.6
memory 2.9
graphic 2.3
gaming graphic 3.0
primary hard drive disk 4.6

does the score look right to u guys? or thats the correct score? should I switch back to window xp pro??

#68 Post by **Kyocera** » Fri Jun 22, 2007 6:21 pm

snorlax your graphic score is the killer, you can run Vista but you might want to try "Adjust for best Performance" in Advanced, performance options. I installed vista on my R52 and got similar scores and went back to XP.

JHaislet · #69 Post by **JHaislet** » Sat Jun 23, 2007 3:30 am

I think I found an abnormality with the Vista Performance Benchmark.

As I wrote above, I did a fresh install of Vista Business a couple days ago and since, my "Graphics" and "Memory" scores have been significantly lower (Graphics were 3.5, now 2.0; Memory was 5.9, now 4.4).

On a whim, I clicked the "View & Print" details link under the results and found some strange results with regards to the Graphics Driver being used. I currently have the latest ATI X300 Mobility driver installed (v.8.380), yet the detailed report states that it's I have the default Vista driver (v.7.14.10.830).

I've tried uninstalling the windows driver and updating it to the 5/17/2007 (v8.380) ATI Mobility driver, yet the details page on the benchmark still shows that it's using the old Vista driver from 2006 for the benchmark!

http://i74.photobucket.com/albums/i248/ ... normal.jpg

Mod Edit: No images without a warning in the subject line.

JHaislet · #70 Post by **JHaislet** » Sat Jun 23, 2007 3:54 am

I popped out a 1GB SODIMM, thus presumably putting the T43 into single-channel DDR mode and 1GB of total memory for Vista.
NOTHING changed on the benchmark (see screenshot)!
This seems really strange as I thought you couldn't get over 4.0 without more than 1GB of ram.

http://i74.photobucket.com/albums/i248/ ... ce_1GB.jpg

Mod Edit: No images without a warning in the subject line.

makaveli559m · #71 Post by **makaveli559m** » Sat Jun 23, 2007 11:01 am

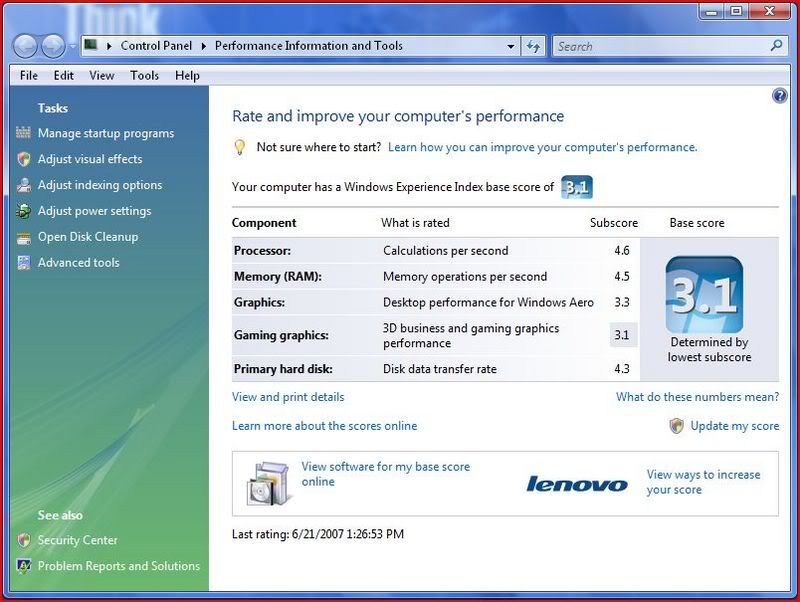

http://i34.photobucket.com/albums/d130/ ... adZ61M.jpg[/img]

Sweet aint it:P I am now an owner of a Thinkpad Z61M running Windows Vista Business

1 GIG of DDR2 80 SATA, 224 Intel Graphic 15 inch wide screen

[/img

Different Mod Edit: Read the rules, the two post's right above clearly stated no images, please read the rules.

#72 Post by **underclocker** » Tue Jun 26, 2007 7:37 am

Scores from another T41p;

T41p Base Score -- 3.4

Processor - 3.5
Memory (RAM) - 4.1
Graphics - 3.6
Gaming Graphics - 3.4
Primary Hard Disk - 4.4

These are consistent with other T41p scores. Testing was done on a stock T41p (Pentium M Banias 1.7GHz) with only RAM upgrades. Notes:

1) It's nice to see that all the scores are respectable, especially the graphics scores - they are still better than some T43 & T60's.

2) The memory score stayed the same with either 512MB X 2, 1GB X1, or 2GB X 2 memory installed.

3) The disk used was the original 7K60 7200 RPM 60GB drive. I also have another T41p with XP installed on a 7K100 7200 RPM 80GB drive and I"m sure the score would go up a little. That newer drive is somewhat faster (previously, I had the same XP image on both and the performance difference was noticeable).

Bottom line, Vista with Aero Glass runs beautifully, so does XP!

rmarshll · #73 Post by **rmarshll** » Thu Jun 28, 2007 11:41 pm

Processor - 4.9
Memory - 4.5
Graphics - 4.3
Gaming - 4.7
HD - 4.7

noetus · #74 Post by **noetus** » Sat Jun 30, 2007 12:41 am

After switching graphics cards (in the Dock) in System Properties I now have a message that briefly flashes up saying "System rating is not available", in a second or two replaced by "Windows Experience Index: Unrated". When I click on that, I get a "Performance Information and Tools" dialog that is pretty empty - just a message about when my last rating was done. Nothing to click. Anyone know how I can reset this to measure the System Rating again? Aero is working, rebooting does not help.

#75 Post by **Kyocera** » Sat Jul 07, 2007 8:20 am

http://windowshelp.microsoft.com/window ... 61033.mspx

found this article that pretty much explains why people with identical systems are going to get different scores, from the article the scores are also based on what programs are running on your system at the time.

The base score and subscores express the level of performance you can expect not only from Windows Vista itself, but from the programs that you run on it.

indiglo · #76 Post by **indiglo** » Mon Jul 09, 2007 2:49 pm

My T61 766416U

Processor Intel(R) Core(TM)2 Duo CPU T7300 @ 2.00GHz: 4.9
Memory (RAM) 0.98 GB: 4.5
Graphics NVIDIA Quadro NVS 140M: 4.0
Gaming graphics 375 MB Total available graphics memory: 4.6
Primary hard disk 17GB Free (37GB Total): 4.4
Windows Vista (TM) Business

System
--------------------------------------------------------------------------------

Manufacturer LENOVO
Model 766416U
Total amount of system memory 1008.00 MB RAM
System type 32-bit operating system
Number of processor cores 2
64-bit capable Yes

Storage
--------------------------------------------------------------------------------

Total size of hard disk(s) 107 GB
Disk partition (C:) 17 GB Free (37 GB Total)
Disk partition (D:) 46 GB Free (70 GB Total)
Media drive (E:) CD/DVD

Graphics
--------------------------------------------------------------------------------

Display adapter type NVIDIA Quadro NVS 140M
Total available graphics memory 375 MB
Dedicated graphics memory 128 MB
Dedicated system memory 0 MB
Shared system memory 247 MB
Display adapter driver version 7.15.11.129
Primary monitor resolution 1440x900
DirectX version DirectX 9.0 or better

Network
--------------------------------------------------------------------------------

Network Adapter Intel(R) 82566MM Gigabit Network Connection
Network Adapter Intel(R) Wireless WiFi Link 4965AGN
Network Adapter Microsoft Tun Miniport Adapter

#77 Post by **Kyocera** » Mon Jul 09, 2007 4:32 pm

looks like you have some very happy drives there

saux · #78 Post by **saux** » Sun Jul 22, 2007 1:57 am

from my crappy t40
banias 1.5GHz
2x256MB PC2100
Radeon Mobility 7500
Fujitsu 80GB 5400rpm

Base Score -- 1.0 (definitely no aero)

Processor - 3.5
Memory (RAM) - 4.2
Graphics - 1.9
Gaming Graphics - 1.0
Primary Hard Disk - 4.5

arni · #79 Post by **arni** » Sun Jul 22, 2007 2:58 am

As of today after upgrading to latest ati catalyst i got a boot from 3.8 to 4.0 on a lenovo T60 2007-63G.

Here's windows sat details:

Processor: Genuine Intel(R) CPU T2500 @ 2.00GHz - 4.7
Memory: 2GB - 4.9
Graphics: ATI MOBILITY RADEON X1400 - 4.5
Gaming Graphics: 4.0
Primary HDD: 5.0

jgrobertson · #80 Post by **jgrobertson** » Sun Jul 22, 2007 5:31 pm

T60P 2623 DDU with T7400 Core 2 Duo and 3 GByte and Hitachi 7K100 7200 HD. ATI Fire GL 5200, 4 GByte Readyboost in Expresscard.

Processor (T7400 Core 2 Duo) 5.0
Memory (3 G Byte) 4.7
Graphics (ATI FireGL 5200) 4.2 (no Catylist but latest driver for 64 bit)
Gaming graphics 4.6
Primary HD 5.0

Vista Ultimate 64 bit.

Base Score 4.2

pphilipko · #81 Post by **pphilipko** » Wed Jul 25, 2007 10:01 pm

Processor: 2.7
Memory: 4.0
Graphics: 1.9
Gaming Graphics: 1.0
Primary Hard Disks: 3.4

Windows Experience Index Base Score: 1.0

Windows Reliability Scale: 4.3

#82 Post by **RonS** » Thu Jul 26, 2007 2:23 pm

T60p, Core2Duo T7600, 2GB RAM, Seagate 160GB/7200.2 with v5200 card in the Advanced Dock. Vista Ultimate 64-bit.

When Dock video is set as primary BASE SCORE 4.7
Processor: 5.2
Memory: 4.7
Graphics: 5.9
Gaming graphics: 5.2
Primary HD: 5.2

When internal v5200 is set as primary BASE SCORE 4.1
Processor: 5.2
Memory: 4.7
Graphics: 4.1
Gaming graphics: 4.6
Primary HD: 5.2

The Advanced Dock is (apparently) bandwith limited to 34 MB/sec. You can see the effect of this bottleneck when using Google Earth on the external video card - it's jumpy, compared with the internal v5200, which is totally smooth. Even though the external card is rated higher, it feels slower. I don't think the WEI test is correctly taking into account video bandwidth bottlenecks when benchmarking desktop performance. 4.1 is probably the accurate number for my system.

steveg47 · #83 Post by **steveg47** » Thu Jul 26, 2007 8:29 pm

Processor: 5.1
Memory: 4.7
Graphics: 4.3
Gaming graphics: 4.7
Primary HD: 5.4 **

**New Hitachi 7K200 really ROCKS!

thaniks · #84 Post by **thaniks** » Sat Aug 04, 2007 2:28 pm

Processor Genuine Intel(R) CPU T2400 @ 1.83GHz 4.7
Memory (RAM) 2.00 GB 4.7
Graphics ATI Mobility Radeon X1300 3.6
Gaming graphics 831 MB Total available graphics memory 3.5
Primary hard disk 60GB Free (75GB Total) 5.2

Windows Vista (TM) Ultimate

System
--------------------------------------------------------------------------------

Manufacturer LENOVO
Model 2623D6U Total amount of system memory 2.00 GB RAM
System type 32-bit operating system
Number of processor cores 2
64-bit capable No

Storage
--------------------------------------------------------------------------------

Total size of hard disk(s) 149 GB
Disk partition (C:) 60 GB Free (75 GB Total)
Disk partition (D:) 25 GB Free (39 GB Total)
Disk partition (E:) 2 GB Free (18 GB Total)
Disk partition (F:) 4 GB Free (18 GB Total)
Media drive (G:) CD/DVD

Graphics
--------------------------------------------------------------------------------

Display adapter type ATI Mobility Radeon X1300
Total available graphics memory 831 MB
Dedicated graphics memory 64 MB
Dedicated system memory 0 MB
Shared system memory 767 MB
Display adapter driver version 8.343.0.0
Primary monitor resolution 1400x1050
DirectX version DirectX 9.0 or better

Network
--------------------------------------------------------------------------------

Network Adapter Intel(R) PRO/1000 PL Network Connection
Network Adapter Intel(R) PRO/Wireless 3945ABG Network Connection
Network Adapter Bluetooth Device (Personal Area Network)
Network Adapter Microsoft Tun Miniport Adapter

casperkid · #85 Post by **casperkid** » Sat Aug 04, 2007 8:05 pm

IBM T41p - 3.5

Processor Pentium M 1.7GHz 3.5
Memory (RAM) 2x512 GB 4.1
Graphics FireGL T2 3.7
Gaming graphics 322 MB Total available graphics memory 3.5
Primary hard disk 60GB 7200rpm 4.4

Windows Vista (TM) Ultimate

jgrobertson · #86 Post by **jgrobertson** » Sat Aug 18, 2007 9:46 pm

this shows the improved performance after replacing the 7K100 HD with the 7K200 (7200 RPM, 200 Gbyte from Hitachi)

Component Before After
Processor 5.0 5.0
Memory 4.6 4.7
Graphics 4.2 4.2 (ATI FireGL 5200)
Gaminig 4.6 4.6
Primary HD 5.0 5.3

#87 Post by **KristianJ** » Sun Aug 19, 2007 5:16 am

Figures on my T42 as shown in sig:

Processor 3.5
Memory 4.1
Graphics 2.0
Gaminig 3.5
Primary HD 4.2

Not at all unexpected - it's not running as slowly as I imagined it might, but who knows what the future might bring?

jgrobertson · #88 Post by **jgrobertson** » Sun Aug 19, 2007 6:55 am

his shows the improved performance after replacing the 7K100 HD with the 7K200 (7200 RPM, 200 Gbyte from Hitachi)

Component Before After
Processor 5.0 5.0
Memory 4.6 4.7
Graphics 4.2 4.2 (ATI FireGL 5200)
Gaminig 4.6 4.6
Primary HD 5.0 5.3

I forgot to say:
T60P 2623DDU
Core 2 Duo
3 Mbyte Ram
200 GByte, 7200 RPM Hitachi 7K200 drive.
ATI FireGL 5200
1600 X 1200 Flexview display.

JHaislet · #89 Post by **JHaislet** » Mon Aug 20, 2007 3:53 am

I built a new mobile system and thought I'd share my Vista Ultimate performance scores (this will be my new media center).
Currently running Ultimate 32bit edition (might switch to 64bit though)

Aopen MiniPc 965-DR
Mobile Core 2 Duo T7300 (2Ghz, 4MB, 800mhz FSB, Socket P)
1GB SODIMM (2x 1GB DDR2-800 on the way)
Santa Rosa Chipset
Intel GMA X3100 Graphics (128MB shared)
Seagate 5400.3 160GB SATA HDD

Tholek · #90 Post by **Tholek** » Mon Aug 20, 2007 6:52 pm

My stats:

Memory 4.8
Graphics 3.4
Gaming 3.4
hard disk 5.0

I haven't got the hang of it yet to know how good that is.

Your Vista Performance Scores

(picture attached)
