T43 fan noise... really that bad?

T40/T41/T42/T43 Series
Post Reply
Message
Author
think.t23
Posts: 20
Joined: Fri Jan 26, 2007 8:44 am
Location: Reykjavík, Iceland

T43 fan noise... really that bad?

#1 Post by think.t23 » Wed May 28, 2008 2:28 pm

Hi.

I have an opportunity of buying a T43p or a T42, I have been reading about the fan noise of the T43.
This laptop would be used mostly for school and in a quiet classrooms.
I would like to hear T43 users opinion on this.

thanks.
H.O.
IBM Thinkpad T23

ajkula66
SuperUserGeorge
SuperUserGeorge
Posts: 17252
Joined: Sun Feb 25, 2007 11:28 am
Location: Belgrade, Serbia

#2 Post by ajkula66 » Wed May 28, 2008 5:18 pm

Having owned both,and in quantities, here's how I see it:

a) One thing you haven't told us is the screen size/resolution of the prospective machines. If you have a choice get whatever has a 15" FlexView LCD, you won't regret it, much better picture quality and way easier on the eyes.
b) T43p will be way noisier than T42 by any margin. It will also be hotter.
c) On the other side, T43p is faster, and generally a better built machine than T42. GPU issues are extremely rare, which can't be said for T42 units.

These are the basics. Posting 7-character model codes for each of your prospective ThinkPads would help determine a few more things that one should consider before purchasing.

Hope this helps.
...Knowledge is a deadly friend when no one sets the rules...(King Crimson)

Cheers,

George (your grouchy retired FlexView farmer)

One FlexView to rule them all: A31p

Abused daily: T520, X200s


PMs requesting personal tech support will be ignored.

think.t23
Posts: 20
Joined: Fri Jan 26, 2007 8:44 am
Location: Reykjavík, Iceland

#3 Post by think.t23 » Wed May 28, 2008 5:33 pm

these are the machines: 2668-G4G and 2373-K5G, both have 14" (1400x1050) LCD.

What about TPfancontrol, is it safe?
H.O.
IBM Thinkpad T23

MGT
Posts: 22
Joined: Sat May 17, 2008 2:24 pm
Location: London, UK

#4 Post by MGT » Wed May 28, 2008 6:01 pm

think.t23 wrote:these are the machines: 2668-G4G and 2373-K5G, both have 14" (1400x1050) LCD.

What about TPfancontrol, is it safe?
No 14" has Flexview, so if you want that, you'll be going for a 15" UXGA display.

I do think 14" 4:3 is the best form factor, but now that I've got a Flexview, I can't think of going back to a TN panel. You'll have to balance the form factor with the IPS screen, because they're mutually exclusive.

mgo
thinkpads.com customer
thinkpads.com customer
Posts: 877
Joined: Wed Jun 13, 2007 10:59 pm
Location: Tucson, Az

#5 Post by mgo » Wed May 28, 2008 6:38 pm

think.t23 wrote:these are the machines: 2668-G4G and 2373-K5G, both have 14" (1400x1050) LCD.

What about TPfancontrol, is it safe?
TPfancontrol isn't magical, but it helps. This program does two things:
1: determins when the fan starts to run as the machine warms up under load
2: controls fan speed and therefore the fan noise when it starts to run
3: some fans (like on the T43) are annoying at any speed. (my opinion) but the irritation can be mitigated with TPfancontrol.

As far as "safe" well if the threshold for starting the fan is set too high, then you have the risk of gradual heat damage.

The program does have a built-in "safety valve" where the computer's BIOS will seize control of the fan speed and over ride TPfancontrol till things cool off again.

I have used TPfancontrol on four of my ThinkPads with good success and no problems. Both XP and Vista will run it. Pay attention to the instructions when installing, there's a little "trick" to it due to the 3rd party freeware controller.

ajkula66
SuperUserGeorge
SuperUserGeorge
Posts: 17252
Joined: Sun Feb 25, 2007 11:28 am
Location: Belgrade, Serbia

#6 Post by ajkula66 » Wed May 28, 2008 11:42 pm

Given that we're discussing 14" machines here, T43p will be even hotter than its 15" version.

If you're intent on running GPU-intensive applications such as AutoCad, Photoshop etc. you may want to go with T43p regardless of heat and noise.
...Knowledge is a deadly friend when no one sets the rules...(King Crimson)

Cheers,

George (your grouchy retired FlexView farmer)

One FlexView to rule them all: A31p

Abused daily: T520, X200s


PMs requesting personal tech support will be ignored.

Johan
Moderator Emeritus
Moderator Emeritus
Posts: 1998
Joined: Mon Mar 07, 2005 2:00 pm
Location: Copenhagen, Denmark

#7 Post by Johan » Thu May 29, 2008 1:43 am

The issue of T42 versus T43 performance (incl. fan noise!) has - as you already know! - been discussed extensively on this forum, and much information is available. I recall a recent, thorough discussion about this; see the thread About to buy; T42 vs T43; NOISE, HEAT, 15" SX vs. UX LC - you may want to browse that (if you haven't already?), and also the links pointed to therein.

Johan
IBM T42p's (2373-Q1U & -Q2U): 2.1 GHz, 15" UXGA FlexView, 2 GB RAM, 128 MB FireGL T2, 128 GB 1.8" SATA SSD, IBM a/b/g, BT, Win 7 Ultimate
IBM T42 (2373-N1G): 1.8 GHz, 15" SXGA+ FlexView, 2 GB RAM, 64 MB Radeon 9600, 64 GB 1.8" SATA SSD, IBM a/b/g, BT, Win 7 Ultimate

AdaSch
Sophomore Member
Posts: 184
Joined: Sun Jan 29, 2006 5:38 am
Location: Poland, Gdansk

#8 Post by AdaSch » Thu May 29, 2008 5:02 pm

Hi,

i have two 2668-G4G, great machines

true ibm

my two t43p are very silent - look on solution

my english is very poor but i tray explain why t43p is loud

automatic translation by google.

a description of why t43p is loud
1 GPU in t43p is different than other models
2 GPU and the CPU does not have an equal amount (CPU is above)
3 stupid engineer with the LENOVO, instead of a different design heatsink devised setting of the thermal GPU between a heatsink
4 A worker, of course, too much preparation required conductive heat
5 heatsink not kept level and is not founded in parallel to the structure of the CPU
5 Radiator is the side GPU
6 engine windmill based on the enclosures
7 casing acts as a resonance box
8 solution - to remove all between heatsink and GPU
9 apply the usual silicone or something similar, but soft
10 radator perfectly sit on the CPU
11 does not touch the engine casing - enjoy the silence, and a lower temperature.
12 I do not recommend AS5, better use liquid cool labolatory pro - the best product

i have many pics from this process

please correct my fatal english
Please, someone to prescribe them to be legible

p.s.
i replace pentium m 750 to 780, but i don't hear diff. still silents
Pentium m 780 is much quicker
W520 CS, FP, WWAN, I7-2920XM, Q2kM 1TB SSD i540s
current W520, W700, X301, X120e, X230*2, MSI GT72 I7-6700Hq GTX980m, MSI GT683 I7-2860QM GTX970M,
before T23, T40, T43p*3, T61p*3, W500

think.t23
Posts: 20
Joined: Fri Jan 26, 2007 8:44 am
Location: Reykjavík, Iceland

#9 Post by think.t23 » Thu May 29, 2008 5:12 pm

AdaSch, thanks for your reply.

It would be nice to see some pictures of this process to get a deeper understanding.

thanks.
H.O.
IBM Thinkpad T23

AdaSch
Sophomore Member
Posts: 184
Joined: Sun Jan 29, 2006 5:38 am
Location: Poland, Gdansk

#10 Post by AdaSch » Sat May 31, 2008 5:58 pm

think.t23 wrote:AdaSch, thanks for your reply.

It would be nice to see some pictures of this process to get a deeper understanding.

thanks.
http://i53.photobucket.com/albums/g79/a ... 30-duy.jpg

http://i53.photobucket.com/albums/g79/a ... 32-duy.jpg

too much thermal glue

http://i53.photobucket.com/albums/g79/a ... 33-duy.jpg

http://i53.photobucket.com/albums/g79/a ... 35-duy.jpg

true noise generator (stick between chasis and fan)

http://i53.photobucket.com/albums/g79/a ... 36-duy.jpg

http://i53.photobucket.com/albums/g79/a ... 37-duy.jpg
before fan modify

http://i53.photobucket.com/albums/g79/a ... 38-duy.jpg

after fan modify (-0,5mm)

http://i53.photobucket.com/albums/g79/a ... 39-duy.jpg

http://i53.photobucket.com/albums/g79/a ... 40-duy.jpg

http://i53.photobucket.com/albums/g79/a ... 41-duy.jpg

http://i53.photobucket.com/albums/g79/a ... 42-duy.jpg

http://i53.photobucket.com/albums/g79/a ... 45-duy.jpg

http://i53.photobucket.com/albums/g79/a ... 46-duy.jpg

http://i53.photobucket.com/albums/g79/a ... 47-duy.jpg

http://i53.photobucket.com/albums/g79/a ... 48-duy.jpg

http://i53.photobucket.com/albums/g79/a ... 51-duy.jpg
lenovo error, bad contact, bad connstruction of heatsink

http://i53.photobucket.com/albums/g79/a ... 52-duy.jpg
buisness card is too fat!

http://i53.photobucket.com/albums/g79/a ... 53-duy.jpg
regular a4 paper is ok

http://i53.photobucket.com/albums/g79/a ... 54-duy.jpg

lenovo orginal thermal component is too fat without silicone!!!

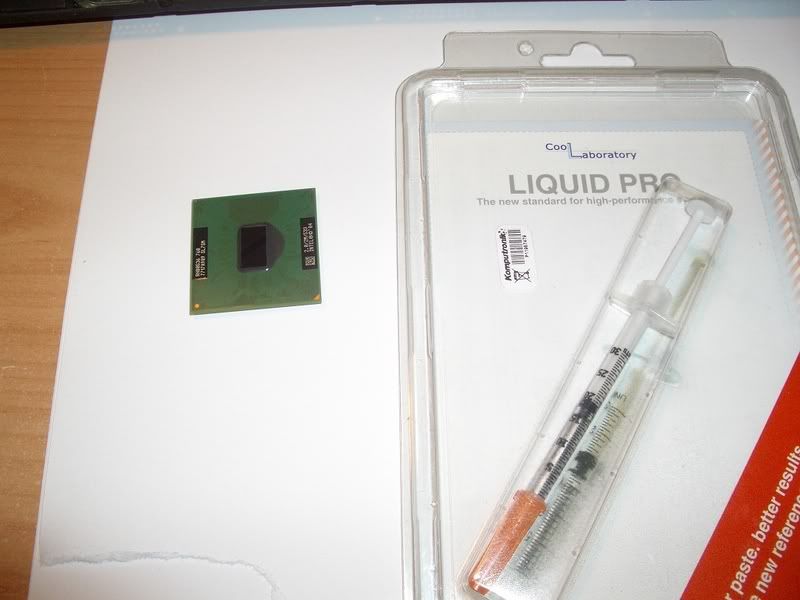

http://i53.photobucket.com/albums/g79/a ... 55-duy.jpg
and the liquid pro :)

http://i53.photobucket.com/albums/g79/a ... 56-duy.jpg

http://i53.photobucket.com/albums/g79/a ... 57-duy.jpg

http://i53.photobucket.com/albums/g79/a ... 58-duy.jpg

http://i53.photobucket.com/albums/g79/a ... 59-duy.jpg

http://i53.photobucket.com/albums/g79/a ... 60-duy.jpg

http://i53.photobucket.com/albums/g79/a ... 61-duy.jpg

and

results

http://i53.photobucket.com/albums/g79/adasch/TFC.png

br

Admin edit: Changed all of the images to links
Last edited by AdaSch on Sun Jun 01, 2008 3:11 am, edited 1 time in total.
W520 CS, FP, WWAN, I7-2920XM, Q2kM 1TB SSD i540s
current W520, W700, X301, X120e, X230*2, MSI GT72 I7-6700Hq GTX980m, MSI GT683 I7-2860QM GTX970M,
before T23, T40, T43p*3, T61p*3, W500

qviri
ThinkPadder
ThinkPadder
Posts: 1275
Joined: Sat Nov 25, 2006 5:45 pm
Location: Berlin, Germany

#11 Post by qviri » Sat May 31, 2008 6:21 pm

AdaSch wrote:please correct my fatal english
Please, someone to prescribe them to be legible
If you PM me in Polish I may be able to translate better. Also, if you could change embedded images into links to images, that would be very helpful.
X220/IPS, T60p/IPS
Nothing endures but change

davidspalding
ThinkPadder
ThinkPadder
Posts: 1593
Joined: Mon Nov 14, 2005 2:39 pm
Location: Durham, NC
Contact:

#12 Post by davidspalding » Sun Jun 01, 2008 2:19 pm

think.t23 wrote:these are the machines: 2668-G4G and 2373-K5G, both have 14" (1400x1050) LCD.

What about TPfancontrol, is it safe?
I've used it for a year or more, and have had no ill-effects. Using it in conjunction with a battery-saving power scheme (which you can customize yourself), I not only run cool and quiet, but run longer on battery. "Notebook Hardware Control" (NHC) discussed around here is also effective.

TPFanCtrl requires some diligence in RTFM'ing the instructions and not using it to just not run the fan at all at any temps, as mgo stated. You can moderate your settings versus the BIOS defaults by switching from one to the other and "hearing" the noise at various speeds (you can also manually set the speed for yourself).

We need a mod to change the subject to indicate scads and scads of images, please....
2668-75U T43, 2GB RAM, 2nd hand NMB kybd, Dock II, spare Mini-Dock, and spare Port Replicators. Wacom BT tablet. Ultrabay 2nd HDD.
2672-KBU X32, 1.5GB RAM, 7200 rpm TravelStar HDD.

think.t23
Posts: 20
Joined: Fri Jan 26, 2007 8:44 am
Location: Reykjavík, Iceland

#13 Post by think.t23 » Sun Jun 01, 2008 4:55 pm

I think I have reached a conclusion. I'm leaning towards another machine, an T42p 2373-GXG.
The T43p was little more expensive then the T42p.

Anything to look out for when testing a used T42p, except for the GPU problem? How can I test problems with the GPU, just by tapping the machine?
H.O.
IBM Thinkpad T23

Johan
Moderator Emeritus
Moderator Emeritus
Posts: 1998
Joined: Mon Mar 07, 2005 2:00 pm
Location: Copenhagen, Denmark

#14 Post by Johan » Mon Jun 02, 2008 12:03 am

think.t23 wrote:Anything to look out for when testing a used T42p, except for the GPU problem? How can I test problems with the GPU, just by tapping the machine?
A few hints about this may be found in the thread Would u say that a used T42P is reliable ? + Things To Check.

Johan
IBM T42p's (2373-Q1U & -Q2U): 2.1 GHz, 15" UXGA FlexView, 2 GB RAM, 128 MB FireGL T2, 128 GB 1.8" SATA SSD, IBM a/b/g, BT, Win 7 Ultimate
IBM T42 (2373-N1G): 1.8 GHz, 15" SXGA+ FlexView, 2 GB RAM, 64 MB Radeon 9600, 64 GB 1.8" SATA SSD, IBM a/b/g, BT, Win 7 Ultimate

jamiphar
Senior Member
Senior Member
Posts: 944
Joined: Mon Aug 14, 2006 4:21 pm
Location: Millstadt, Illinois
Contact:

#15 Post by jamiphar » Mon Jun 02, 2008 12:06 pm

Just wanted to post my experience with the T43p (14.1") in my signature. It definitely runs hot out of the box, mine was getting up to 80C before I did anything to it. Now, after undervolting it and applying fresh AS5 (instead of the black thermal pad), the laptop never goes above 66C (even when stress-testing for hours) and it stays around 41C-45C during medium use.

With the laptop staying so much cooler now, the fan doesn't get too loud. It's usually off or at a very low speed.
Last edited by jamiphar on Wed Jun 04, 2008 11:18 am, edited 1 time in total.
James Arndt
Lenovo Business Partner/Authorized Reseller

ThinkPad T420s [4171-7FU] i7-2640m/8GB/480GB SSD
ThinkPad 600X [2645-4EU] PIII-M 1GHz/576MB/60GB Internal WiFi/BT/ThinkLight/Slot-loading DVD/CD-RW

www.famteam.com
www.arndtcomputer.com

kai920
Freshman Member
Posts: 95
Joined: Mon Nov 07, 2005 11:07 pm
Location: Hong Kong

#16 Post by kai920 » Tue Jun 03, 2008 7:16 pm

I've had a T43 2668-AH3 for 3 years (warranty expires October 2008) and the only problem I had with the fan was that it needed replacement. Possibly due to wear n tear.. it was making some loud, un-normal noises.

I have never been bothered by the fan noise otherwise.
T43 | 1.73GHz | 2GB | 80GB 7.2K | 14x10
IBM/Lenovo T43 Review

ulrich.von.lich
Junior Member
Junior Member
Posts: 488
Joined: Mon Oct 31, 2005 4:18 am

#17 Post by ulrich.von.lich » Wed Jun 04, 2008 11:16 am

The T43 can be a quiet machine when using properly. Here are some tips:

1. Use TPFanControl to manage the fan under all circumstances. I sat the fan speed at 1 when TP running about 50 - 60C, the BIOS would've sat it at 4 which is loud and unnecessary. I also sat the fan speed at maximum 7 for extreme conditions. such as between 80 - 90C, BIOS would've sat it at only 4 which is insufficient in this case. Under BIOS control, the fan would speed up to 7 at about 92C.

2. Use ThinkPad Default as power scheme instead of Maximum Performance. This would reduce the operating temperature for non CPU intensive tasks. The CPU would be put in full power when resource demanding programs are running.

Right now the maximum temperature on my T43 is only 57C (54C when not hooked up to Dell monitor) and the fan speed is only 1. The noise level is very tolerable.

Hope it helps!

rssb
Junior Member
Junior Member
Posts: 481
Joined: Tue Dec 14, 2004 4:35 pm
Location: Richmond,VA

#18 Post by rssb » Wed Jun 04, 2008 12:50 pm

Another important factor to be considered is, the original T41, T42 long fan heat sinks, have more % of copper as compared to the T43 one.

Making it a better conductor.

rain1984
Posts: 6
Joined: Sun Jun 01, 2008 7:48 am
Location: Hangzhou, CHINA

T43P is better

#19 Post by rain1984 » Thu Jun 05, 2008 11:22 am

the screen is nice! as to the fan noise, I think it is much much quiter than desktop, right? You can also set the cpu to a auto adapt mode reduce heat. Fan control is pretty good software!
IBM T43 BH1 2.0GHz 1.5G DDR2 ATI X300 1400*1050

Marten
Posts: 24
Joined: Sun Sep 20, 2009 2:08 pm
Location: St. Petersberg, Russian Federation

Re: T43 fan noise... really that bad?

#20 Post by Marten » Sun Oct 25, 2009 4:54 pm

To AdaSch
What did you put between GPU and fan? Some thermal compound or silicon? Is it safe to remove that rubber layer?
Thanks.

AdaSch
Sophomore Member
Posts: 184
Joined: Sun Jan 29, 2006 5:38 am
Location: Poland, Gdansk

Re: T43 fan noise... really that bad?

#21 Post by AdaSch » Sun Oct 25, 2009 5:33 pm

Hi,

I just re profile Cu radiator to perfect contact between cpu and GPU (radiator is very plastic)
(of course, test, modification and check without thermal compound)

after that i apply thin layer Arctic silvrer 5 on gpu and radiator (look on instruction in AS5 home page)

from that moment i forget about problem with fan noise and High temp

my max registered temperature is near 85stC with 2,26GPU

i do abut 30 mods with 100% success)

more about my idea: look bellow.



Cheers
W520 CS, FP, WWAN, I7-2920XM, Q2kM 1TB SSD i540s
current W520, W700, X301, X120e, X230*2, MSI GT72 I7-6700Hq GTX980m, MSI GT683 I7-2860QM GTX970M,
before T23, T40, T43p*3, T61p*3, W500

David_r
Posts: 3
Joined: Tue Mar 23, 2010 3:13 am
Location: Sosnowiec, Poland

Re: T43 fan noise... really that bad?

#22 Post by David_r » Tue Mar 23, 2010 5:10 am

I additional remove heatspreader from GPU chip and reaply fresh thermal compound.

http://www.spawalniczy.com.pl/1.jpg

http://www.spawalniczy.com.pl/2.jpg

At maximum performance i noticed 72C - cpu and 65C - gpu
(t43p 15'UXGA - 2.13Mhz - ATI v3200)

Post Reply
  • Similar Topics
    Replies
    Views
    Last post

Return to “ThinkPad T40/T41/T42/T43 Series”

Who is online

Users browsing this forum: No registered users and 22 guests
