Horizontal LCD distortion (pic warning)

#1 Post by jaspen-meyer » Wed Feb 10, 2016 1:40 pm

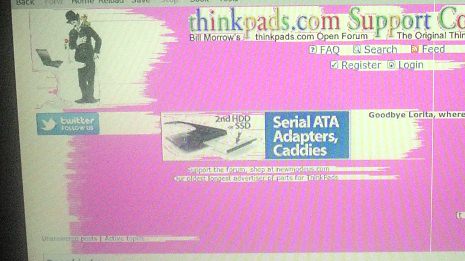

My x21 is showing the above on the lcd.
I don't have access to an external display, to test the vga output, until the weekend.
If I x-forward an application over ssh, typing on the remote machine causes the x21 display's distortion to jitter.

The distortion also shows itself on boot - the IBM splash screen is also distorted, there is a dropshadow of neon green behind the letters on the splash screen.

What's wrong with the machine and what can I do to fix it?
T420 i7 3612QM seabios; T420 i7 3630QM; T400 Q9100 seabios; T61 P9600; T60 libreboot; x62; x60s libreboot, led; x24 xiphmont led

jaspen-meyer
Senior Member
Senior Member
Posts: 837
Joined: Wed May 19, 2010 11:21 pm
Location: Pardubice, Czech Republic
Contact:

Re: Horizontal LCD distortion (pic warning)

#2 Post by jaspen-meyer » Wed Feb 10, 2016 3:23 pm

forgot to mention - HMM says to check lcd cable. I think I've striped the head of a screw on the LCD - couldn't
get to the cable. Will try again tomorrow.

The distortion doesn't seem to respond to me pressing on various parts of the machine.
T420 i7 3612QM seabios; T420 i7 3630QM; T400 Q9100 seabios; T61 P9600; T60 libreboot; x62; x60s libreboot, led; x24 xiphmont led

automobus
Senior Member
Senior Member
Posts: 546
Joined: Sun Jan 24, 2010 5:32 pm
Location: USA : Illinois : Chicago

Re: Horizontal LCD distortion (pic warning)

#3 Post by automobus » Thu Feb 11, 2016 3:48 pm

Likely, it is a failure of controller/formatter board in screen assembly. Something on/in/about the circuitboard behind panel is damaged. Probably, the modular/replaceable ThinkPad LCD cable is fine.

jaspen-meyer
Senior Member
Senior Member
Posts: 837
Joined: Wed May 19, 2010 11:21 pm
Location: Pardubice, Czech Republic
Contact:

Re: Horizontal LCD distortion (pic warning)

#4 Post by jaspen-meyer » Tue Feb 16, 2016 3:57 am

I unscrewed the three screws which hold the plastic frame in front of the display.
Detached the plastic frame from in front of the screen.
Tapped on the inverter with my finger.
Touched the lcd cable with my finger.

The distortion disappeared!
Problem 'fixed'.
