760L ram card question

[kocoman]

Does anyone know what 760L use for ram? how to search on ebay ? Thanks
The ram adapter is different than the 760ED

[AlphaKilo470]

72 pin SODIMMS.

[kocoman]

72 pin SODIMMS.

but why http://www.memoryx.net/ktmtp76032.html says
32MB 88pin SODIMM (88 pin?). Is this adapter compatable
http://cgi.ebay.com/ws/eBayISAPI.dll?Vi ... eName=WDVW
FRU / IBM Part # 29H9296 P/N 91G1092


So that is not EDO? how much pins for 760ED? Thanks

[goldeneagle]

72 pin SODIMMS.

Definitely not 72 pin. I counted. And finding RAM for the 760C/L is turning out to be a big chore. It's 88 pins.

[Enig]

According to the withdrown book the 760L takes 88pin EDO:
http://ps-2.kev009.com/psref/twbook.pdf
..page 64

8MB/64MB 70ns/non-parity/3.3volt/fastpage
2 sockets for two JEDEC 88 pin EDO SO DIMMs of 8 or 16 MB (acts like fast page)

Edit: Same with the 760C - page 66

Edit2: just realized that 88 pin EDO is definetly not the standard 144 pin I’m used to xD

[Bondi]

I bought once a module for my 760LD, it was listed as KINGSTON IBM Thinkpad KTM-TP760/16A 16MB EDO SODIMM MEMORY MODULE 88 pin

[goldeneagle]

I'm also having a helluva time finding that 88 pin RAM. I can't find anything on ebay. Maybe I'll get lucky and find some lurking with all the 760E/ED/etc memory adapters I have on my shelf for ebay.

EDIT:
Got lucky and found a module. Googled the part number and it appears to be 16MB. Better than nothing.

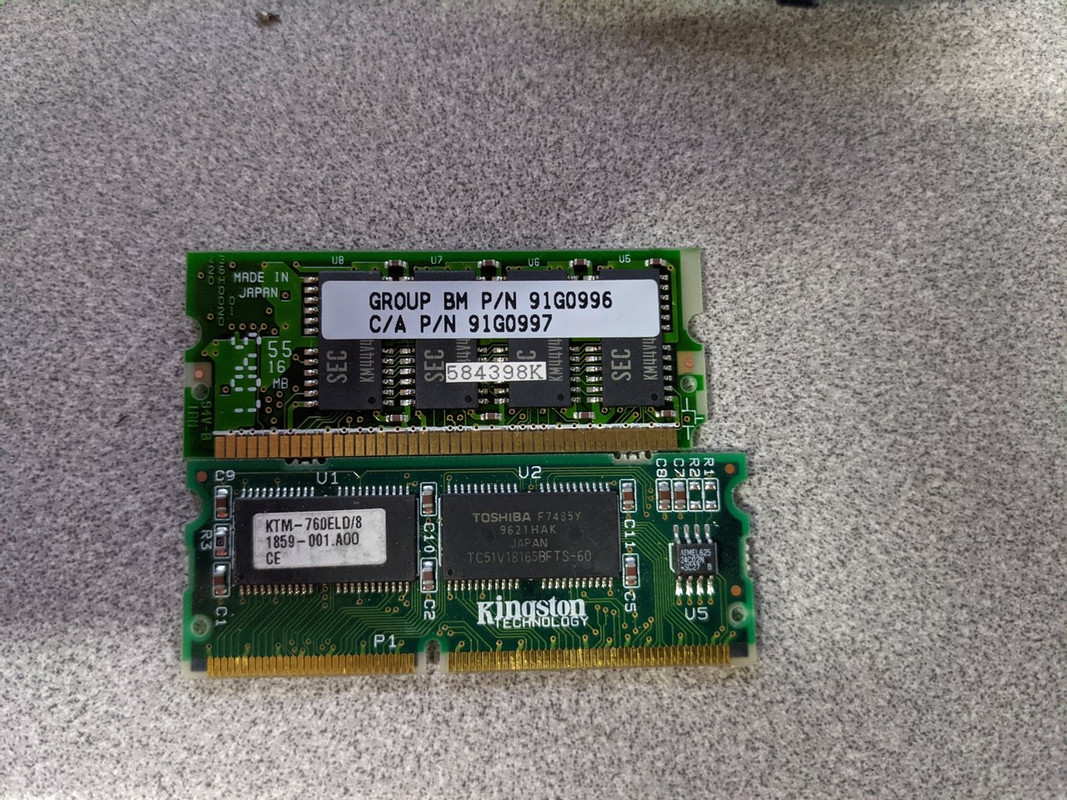

Here's a photo of both for a size comparison. I don't have a 72 pin SODIMM handy, otherwise, I'd show that as well.
